Orange Pulp Juice Plastic Bottle Washing Filling Capping Labeling Machine
Machine list of complete juice production line
Cap elevator >>> Cap sterilizer tuunnel
V
Sugar melting >>> Mixing >>> filter >>> Homogenizer >>> Juice sterilizer >>> V
V V
Juice buffer tank >> V
V V
PET bottle blow molding machine >>> Bottle unscrambler >>> Air conveyor >>>> Juice filling system >>> Sleeve shrink labeling machine >>> Shrinking tunnel >>> Shrink wrapping machine
^
^
Steam generator
Description
This is the complete solution of pulp juice filling and packing line. Including:
1, Filling system
- Monoblock washing-filling-capping machine
- Cap elevator
- Cap washing tunnel
- Cap washing recycling tank
2, Bottle delivery system
- Bottle unscrambler
- Air conveyor
- Belt conveyor
- Buffer conveyor
3, Packing system
- Sleeve labeling machine
- Shrinking tunnel
- Steam generator
- Shrink wrapping machine
We offercmore
1, PET bottle blow molding system
- PET bottle blowing machine
- Preform unscrambler
- Bottle mould
- High pressure air compressor
- Low pressure air compressor
- Mould chiller
- Air filter
- Air dryer
- Air storage tank
2, Water treatment system
- Booster pump
- Pre-treatment
- RO unit
- Sterilizing machine
- Pure water storage tank
3, Juice processing system
- Sugar melting
- Mixing
- Filter
- Sterilizing
- Cooking tank
- CIP cleaning
- Buffer tank
Characteristics
- We offer turnkey project;
- If you don't have any idea of the production line, pls let me know your initial idea, we would like to recommend;
- We design bottle shape by free;
- We can design the machine layout;
- We have engineer to be abroad for machine setup
Technical specification
| Model | CGF8-8-3 | CGF12-12-4 | CGF16-16-5 | CGF18-18-6 | CGF24-24-8 |
| Capacity (@500ml bottle) | 2000BPH | 3000-4000BPH | 4000-6000BPH | 6000-8000BPH | 8000-12000BPH |
| Bottle type | Round or square PET bottle |
| Bottle diameter | 50-115 mm |
| Bottle height | 160-320 mm |
| Air consumption | 0.3-0.7Mpa |
| Air pressure | 5-8bar |
| Washing medium | Aseptic water |
| Pressure of washing | >0.06Mpa <=0.2Mpa |
| Power (kw) | 3 | 4.4 | 4.4 | 4.4 | 5.2 |
| Weight (kg) | 3000 | 3200 | 4000 | 4500 | 6500 |
Our configurations
| Electric parts |
| PLC / Touch screen / Transducer | Siemens / Mitsubishi / Schneider |
| Contactor / relay | Schneider |
| Light sensor | Autonics |
| Pneumatic parts and Valve |
| Oil - water separator | Airtac |
| Pneumatic valve | Airtac / Festo / SMC |
| Solenoid valve | Airtac / SMC |
Contact information
Please write to us with below information for getting detailed quotation sheet quickly:
- What is the filling material;
- What is your bottle type and cap type;
- How many bottle types that you have;
- How many bottles per hour you will produce;
Contact person: Vickiesunqiu
MOB (whatsapp / wechat): 0086 13584426100
Email: sunpiu2012@gmail.com
Skype: vickiesunqiu

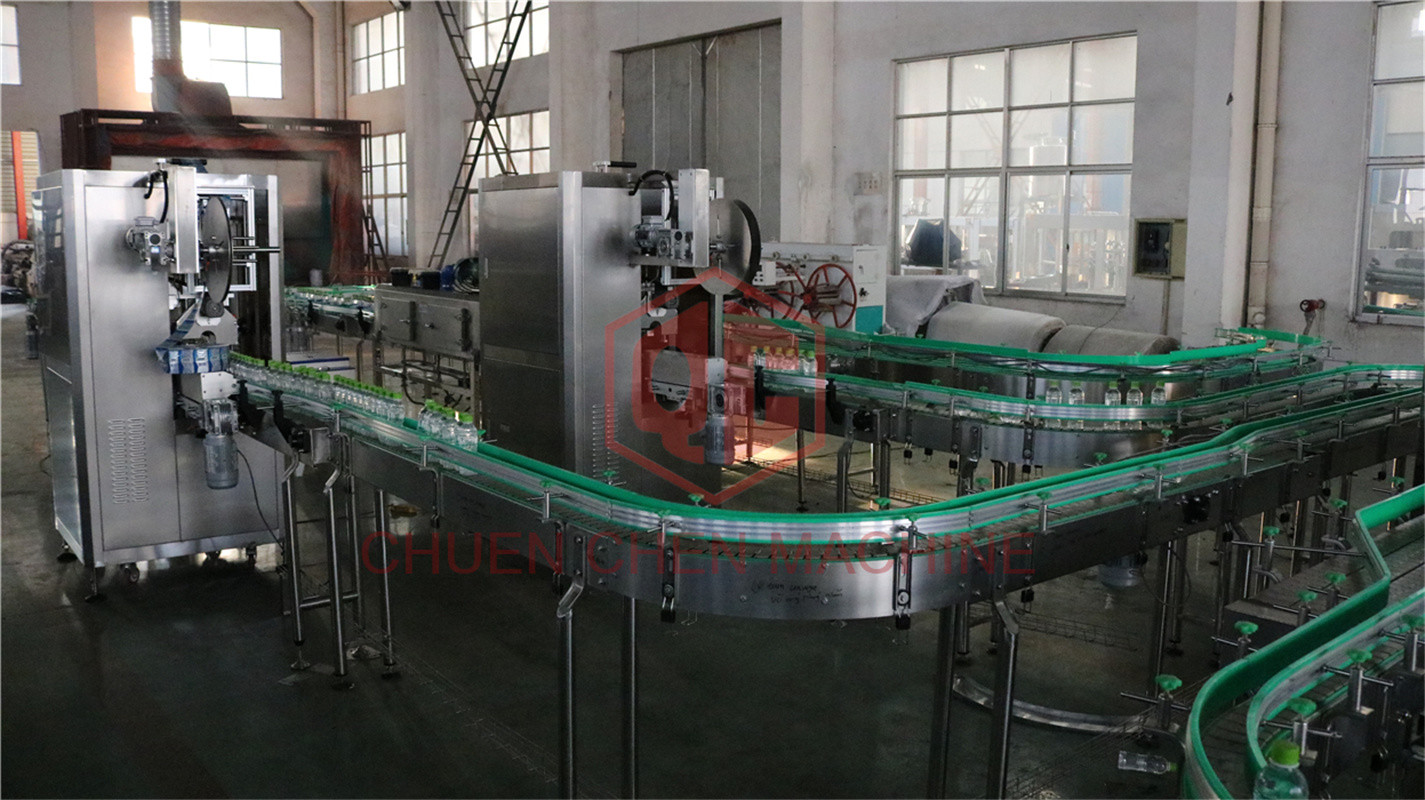

Detailed photo for ref
